The region class represents a region in 2D space. More...

#include "src/pinspec/Region.h"

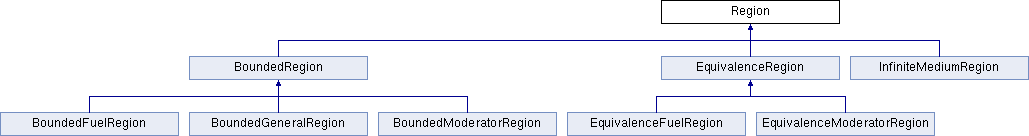

Inheritance diagram for Region:

Public Member Functions
	Region (const char region_name=(char )"")
	Region constructor. More...

virtual	~Region ()
	Empty destructor allows SWIG to cleanup memory for surfaces. More...

char *	getName ()
	Return the name of the region. More...

int	getUid () const
	Returns the unique ID auto-generated for the region. More...

Material *	getMaterial ()
	Returns a pointer to the material filling this region. More...

bool	containsIsotope (Isotope *isotope)
	Determines whether this region contains a particular isotope. More...

regionType	getRegionType ()
	Return the type of region. More...

float	getVolume ()
	returns the volume of this Region . More...

float	getBucklingSquared ()
	Returns the squared geometric buckling. More...

float	getTotalMacroXS (float energy)
	Computes and returns the total macroscopic cross-section in the region at some energy (eV). More...

float	getTotalMacroXS (int energy_index)
	Computes and returns the total macroscopic cross-section in the region at some index into the uniform lethargy grid. More...

float	getTotalMicroXS (float energy)
	Computes and returns the total microscopic cross-section in the region at some energy (eV). More...

float	getTotalMicroXS (int energy_index)
	Computes and returns the total microscopic cross-section in the region at some index into the uniform lethargy grid. More...

float	getElasticMacroXS (float energy)
	Computes and returns the macroscopic elastic scattering cross-section in the region at some energy (eV). More...

float	getElasticMacroXS (int energy_index)
	Computes and returns the macroscopic elastic scattering cross-section in the region at some index into the uniform lethargy grid. More...

float	getElasticMicroXS (float energy)
	Computes and returns the microscopic elastic scattering cross-section in the region at some energy (eV). More...

float	getElasticMicroXS (int energy_index)
	Computes and returns the microscopic elastic scattering cross-section in the region at some index into the uniform lethargy grid. More...

float	getAbsorptionMacroXS (float energy)
	Computes and returns the macroscopic absorption cross-section in the region at energy (eV). More...

float	getAbsorptionMacroXS (int energy_index)
	Computes and returns the macroscopic absorption cross-section in the region at some index into the uniform lethargy grid. More...

float	getAbsorptionMicroXS (float energy)
	Computes and returns the microscopic absorption cross-section in the region at some energy (eV). More...

float	getAbsorptionMicroXS (int energy_index)
	Computes and returns the microscopic absorption cross-section in the region at some index into the uniform lethargy grid. More...

float	getCaptureMacroXS (float energy)
	Computes and returns the macroscopic capture cross-section in the region at some energy (eV). More...

float	getCaptureMacroXS (int energy_index)
	Computes and returns the macroscopic capture cross-section in the region at some index into the uniform lethargy grid. More...

float	getCaptureMicroXS (float energy)
	Computes and returns the microscopic capture cross-section in the region at some energy (eV). More...

float	getCaptureMicroXS (int energy_index)
	Computes and returns the microscopic capture cross-section in the region at some index into the uniform lethargy grid. More...

float	getFissionMacroXS (float energy)
	Computes and returns the macroscopic fission cross-section in the region at some energy (eV). More...

float	getFissionMacroXS (int energy_index)
	Computes and returns the macroscopic fission cross-section in the region at some index into the uniform lethargy grid. More...

float	getFissionMicroXS (float energy)
	Computes and returns the microscopic fission cross-section in the region at some energy (eV) More...

float	getFissionMicroXS (int energy_index)
	Computes and returns the microscopic fission cross-section in the region at some index into the uniform lethargy grid. More...

float	getTransportMicroXS (float energy)
	Computes and returns the microscopic transport cross-section in the region at some index into the uniform lethargy grid. More...

float	getTransportMicroXS (int energy_index)
	Computes and returns the microscopic transport cross-section in the region at some index into the uniform lethargy grid. More...

float	getTransportMacroXS (float energy)
	Computes and returns the macroscopic transport cross-section in the region at some index into the uniform lethargy grid. More...

float	getTransportMacroXS (int energy_index)
	Computes and returns the macroscopic transport cross-section in the region at some index into the uniform lethargy grid. More...

void	setMaterial (Material *material)
	Set the material filling this region. More...

void	setVolume (float volume)
	Sets the volume for this region . More...

void	setBucklingSquared (float buckling_squared)
	Sets the squared geometric buckling for the geometry. More...

virtual void	collideNeutron (neutron *neutron)=0
	This method collides a neutron within the region. More...

Protected Attributes
char *	_region_name

int	_uid

Material *	_material

regionType	_region_type

float	_buckling_squared

float	_volume

Static Protected Attributes
static int	_n = 1

Detailed Description

The region class represents a region in 2D space.

The region class is a superclass allowing for subclasses representing infinited media, heterogeneous/homogeneous equivalance fuel/moderator regions, or even heterogeneous regions bounded by 2D quadratic surfaces, filled by a material.

Constructor & Destructor Documentation

Region::Region ( const char * region_name = (char*)"" )

Region constructor.

Sets defaults for the geometric parameters to 0.

Parameters

region_name the (optional) name of the region

Region::~Region ( )

virtual

Empty destructor allows SWIG to cleanup memory for surfaces.

Destructor lets SWIG delete the materials and isotopes during garbage collection.

Member Function Documentation

virtual void Region::collideNeutron ( neutron * neutron )

pure virtual

This method collides a neutron within the region.

This method encapsulates all of the neutron scattering physics which is further encapsulated by the material and isotope classes. This method must be implemented for each region subclass type.

Parameters

neutron the neutron of interest

Implemented in BoundedRegion, EquivalenceRegion, and InfiniteMediumRegion.

bool Region::containsIsotope ( Isotope * isotope )

Determines whether this region contains a particular isotope.

Parameters

isotope the isotope of interest

Returns: true if the region contains the isotope; otherwise false

float Region::getAbsorptionMacroXS ( float energy )

Computes and returns the macroscopic absorption cross-section in the region at energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the macroscopic absorpotion cross-section $(cm^{-1})$

float Region::getAbsorptionMacroXS ( int energy_index )

Computes and returns the macroscopic absorption cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the macroscopic absorption cross-section $(cm^{-1})$

float Region::getAbsorptionMicroXS ( float energy )

Computes and returns the microscopic absorption cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the microscopic absorption cross-section

float Region::getAbsorptionMicroXS ( int energy_index )

Computes and returns the microscopic absorption cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the microscopic absorption cross-section

float Region::getBucklingSquared ( )

Returns the squared geometric buckling.

Returns: the geometric buckling squared

float Region::getCaptureMacroXS ( float energy )

Computes and returns the macroscopic capture cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the macroscopic capture cross-section $(cm^{-1})$

float Region::getCaptureMacroXS ( int energy_index )

Computes and returns the macroscopic capture cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the macroscopic capture cross-section $(cm^{-1})$

float Region::getCaptureMicroXS ( float energy )

Computes and returns the microscopic capture cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the microscopic capture cross-section

float Region::getCaptureMicroXS ( int energy_index )

Computes and returns the microscopic capture cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the microscopic capture cross-section

float Region::getElasticMacroXS ( float energy )

Computes and returns the macroscopic elastic scattering cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the macroscopic elastic scattering cross-section $(cm^{-1})$

float Region::getElasticMacroXS ( int energy_index )

Computes and returns the macroscopic elastic scattering cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the total macroscopic cross-section $(cm^{-1})$

float Region::getElasticMicroXS ( float energy )

Computes and returns the microscopic elastic scattering cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the microscopic elastic scattering cross-section

float Region::getElasticMicroXS ( int energy_index )

Computes and returns the microscopic elastic scattering cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the microscopic elastic scattering cross-section

float Region::getFissionMacroXS ( float energy )

Computes and returns the macroscopic fission cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the macroscopic fission cross-section $(cm^{-1})$

float Region::getFissionMacroXS ( int energy_index )

Computes and returns the macroscopic fission cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the macroscopic capture cross-section $(cm^{-1})$

float Region::getFissionMicroXS ( float energy )

Computes and returns the microscopic fission cross-section in the region at some energy (eV)

Parameters

energy the energy of interest (eV)

Returns: the microscopic fission cross-section

float Region::getFissionMicroXS ( int energy_index )

Computes and returns the microscopic fission cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the microscopic fission cross-section

Material * Region::getMaterial ( )

Returns a pointer to the material filling this region.

Returns: a pointer to the material filling the region

char * Region::getName ( )

Return the name of the region.

Returns: a character array representing this region's name

regionType Region::getRegionType ( )

Return the type of region.

Returns: the region type (INFINITE, EQUIVALENT_FUEL, etc.)

float Region::getTotalMacroXS ( float energy )

Computes and returns the total macroscopic cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the total macroscopic cross-section $(cm^{-1})$

float Region::getTotalMacroXS ( int energy_index )

Computes and returns the total macroscopic cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the total macroscopic cross-section $(cm^{-1})$

float Region::getTotalMicroXS ( float energy )

Computes and returns the total microscopic cross-section in the region at some energy (eV).

Parameters

energy the energy of interest (eV)

Returns: the total microscopic cross-section

float Region::getTotalMicroXS ( int energy_index )

Computes and returns the total microscopic cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid

Returns: the total microscopic cross-section

float Region::getTransportMacroXS ( float energy )

Computes and returns the macroscopic transport cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy the energy of interest (eV)

Returns: the macroscopic transport cross-section

float Region::getTransportMacroXS ( int energy_index )

Computes and returns the macroscopic transport cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the macroscopic transport cross-section

float Region::getTransportMicroXS ( float energy )

Computes and returns the microscopic transport cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy the energy of interest

Returns: the microscopic transport cross-section

float Region::getTransportMicroXS ( int energy_index )

Computes and returns the microscopic transport cross-section in the region at some index into the uniform lethargy grid.

Parameters

energy_index the index into the uniform lethargy grid.

Returns: the microscopic transport cross-section

int Region::getUid ( ) const

Returns the unique ID auto-generated for the region.

Returns: a unique ID for the region

float Region::getVolume ( )

returns the volume of this Region $ (cm^3) $ .

Returns: the region's volume

void Region::setBucklingSquared ( float buckling_squared )

Sets the squared geometric buckling for the geometry.

This method also sets the bucklking squared for the material filling it.

Parameters

buckling_squared the squared geometric buckling

void Region::setMaterial ( Material * material )

Set the material filling this region.

This method also increments the volume for the material by the volume occuppied by the region.

Parameters

material a pointer to a material

void Region::setVolume ( float volume )

Sets the volume for this region $ (cm^3) $ .

Parameters

volume the volume occuppied by this region

Member Data Documentation

float Region::_buckling_squared

protected

The squared geometric buckling

Material* Region::_material

protected

A pointer to the material filling the region

int Region::_n = 1

staticprotected

A static class variable to generate a UID for each new region

char* Region::_region_name

protected

The region's name

regionType Region::_region_type

protected

The type of region (INFINITE, EQUIVALNENCE, or BOUNDED)

int Region::_uid

protected

The region's unique identifier

float Region::_volume

protected

The volume occupied by the region in 2D space

The documentation for this class was generated from the following files:

pinspec/src/Region.h
pinspec/src/Region.cpp

Public Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
